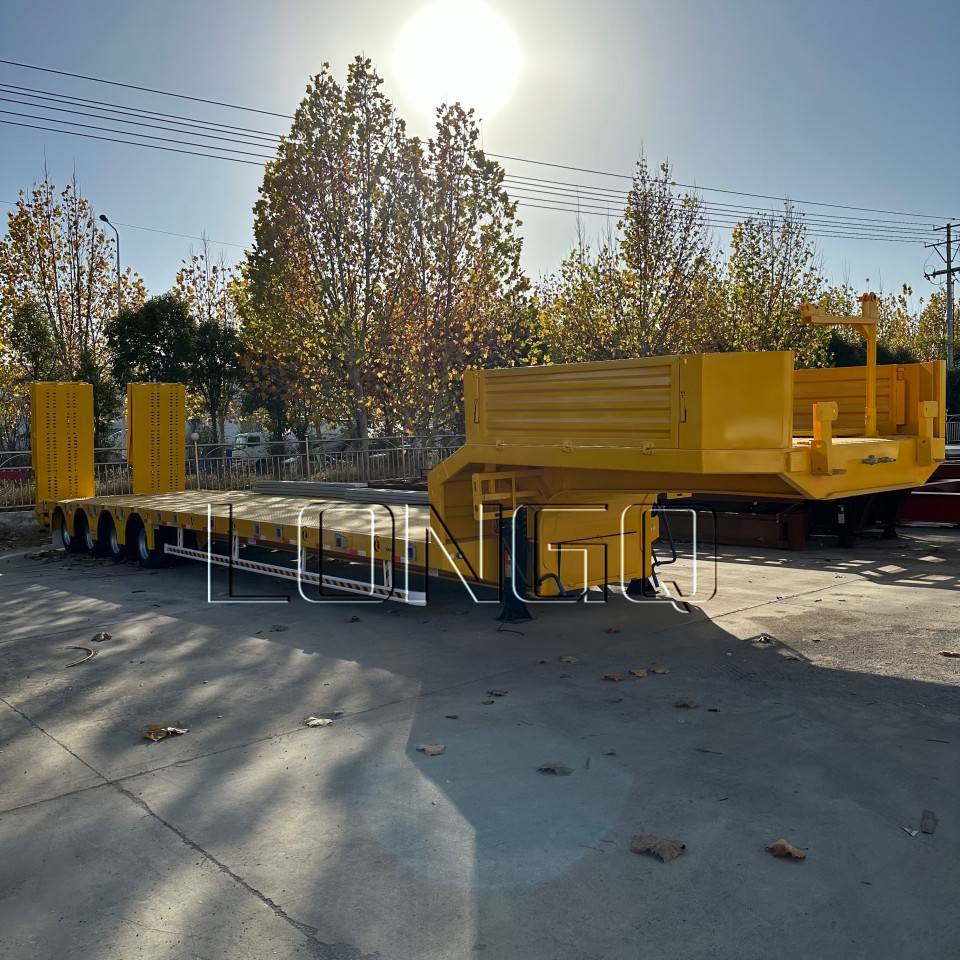

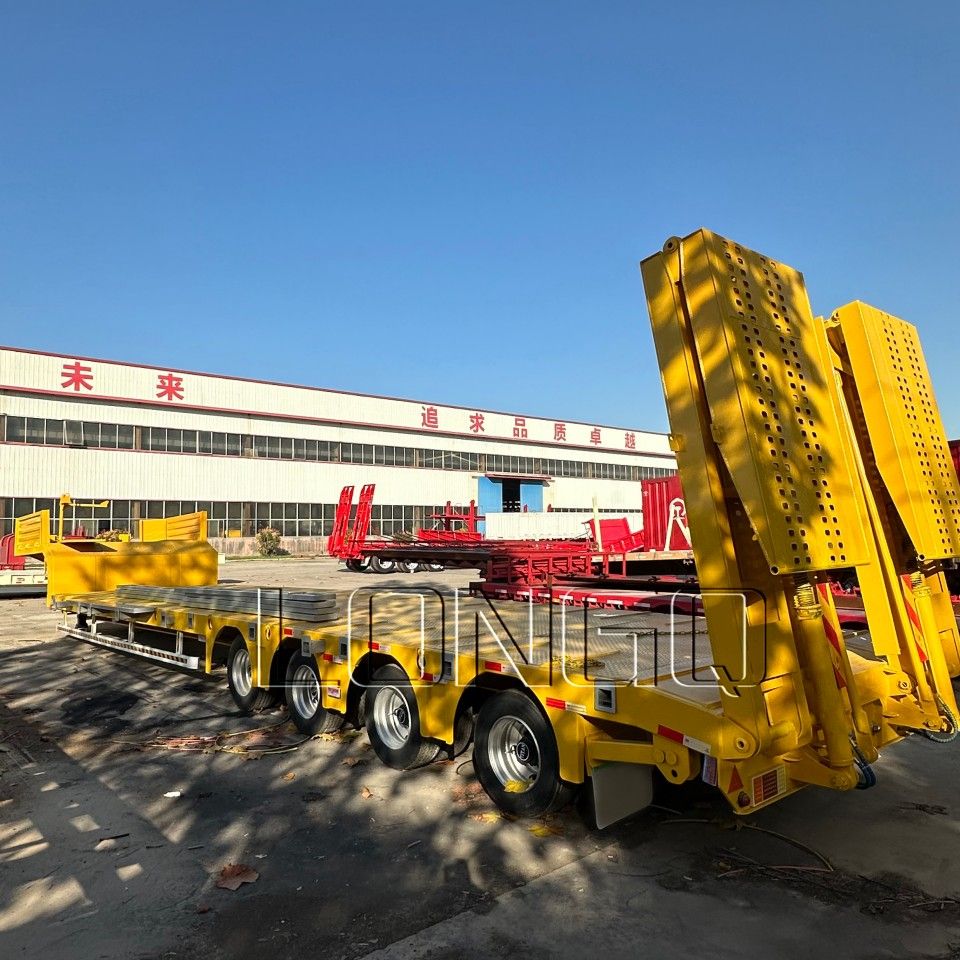

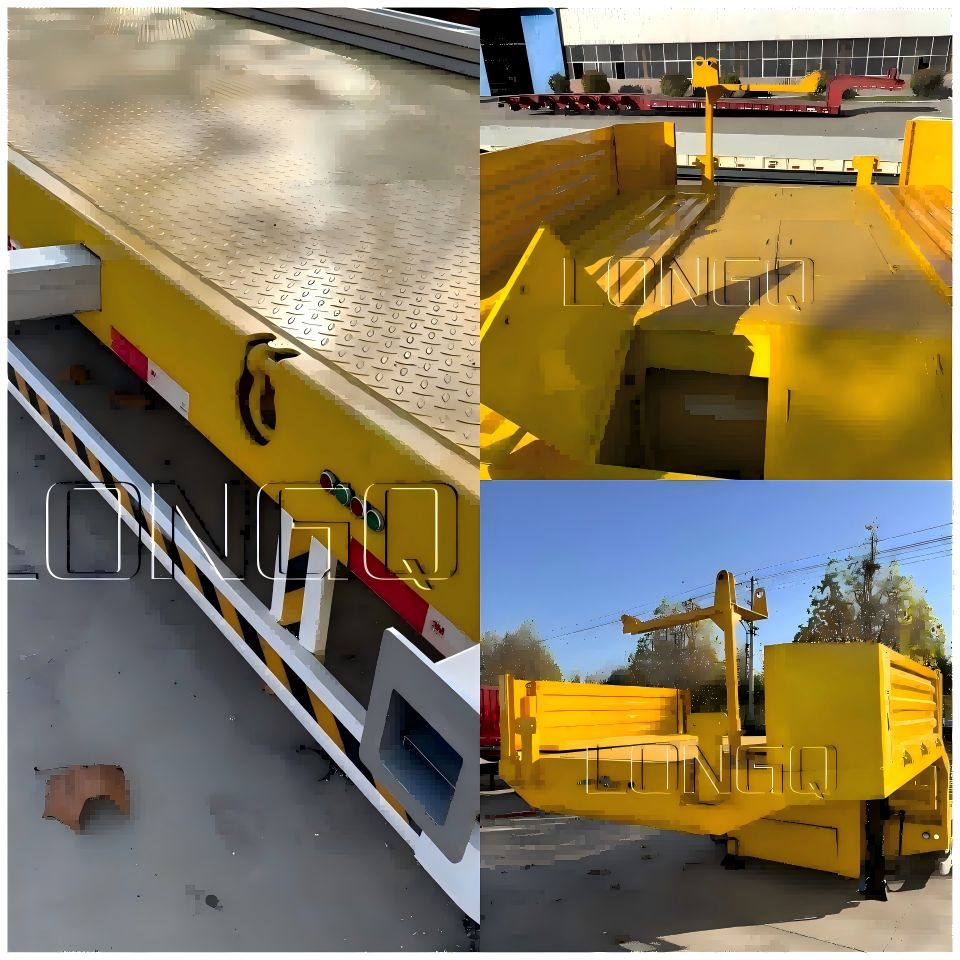

4 Axle Low Loader
Increased Load Capacity: The design allows for the transportation of larger and heavier loads compared to standard trailers, enhancing operational efficiency.
Safety: With a lower deck height, the risk of accidents related to load height is minimized, ensuring safer transportation of oversized equipment.
Versatility: Suitable for a wide range of applications, including construction, mining, and heavy-duty transportation, making it a versatile asset for various industries.
Cost-Effective Transportation: By enabling the transport of more substantial loads in fewer trips, low bed semi trailers can significantly reduce transportation costs.
Compliance with Regulations: Designed to meet various regulatory standards for transporting oversized loads, ensuring compliance and avoiding penalties.
A Low Bed Semi Trailer is a specialized type of trailer designed for transporting heavy and oversized loads, such as construction machinery, industrial equipment, and large components. Characterized by its low deck height, it allows for the safe and efficient transportation of tall loads while maintaining a lower center of gravity, which enhances stability during transit.
Key Features:
Low Deck Design: The low profile design minimizes the height of the load, making it suitable for transporting tall machinery without exceeding height restrictions.
Robust Construction: Made from high-strength steel, the trailer is built to withstand heavy loads and harsh conditions, ensuring durability and longevity.
Adjustable Axle Configuration: Many models come with adjustable axle positions, allowing for better weight distribution and compliance with varying road regulations.

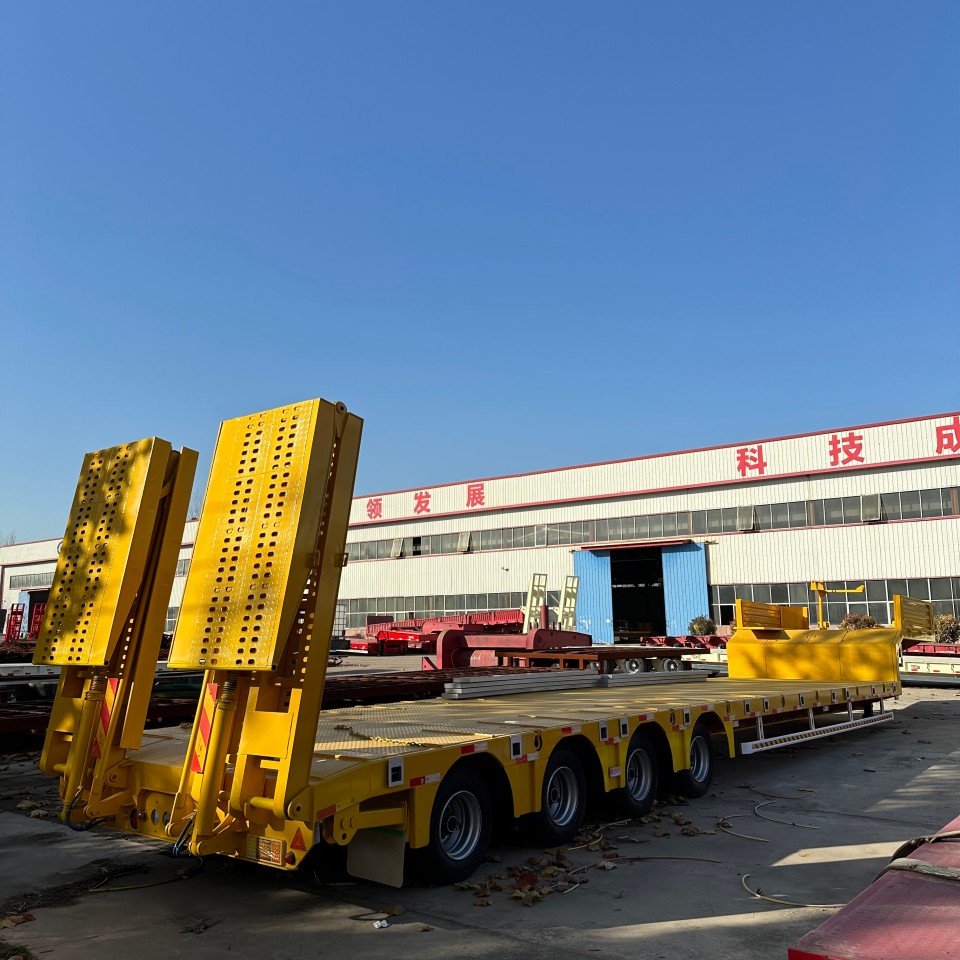

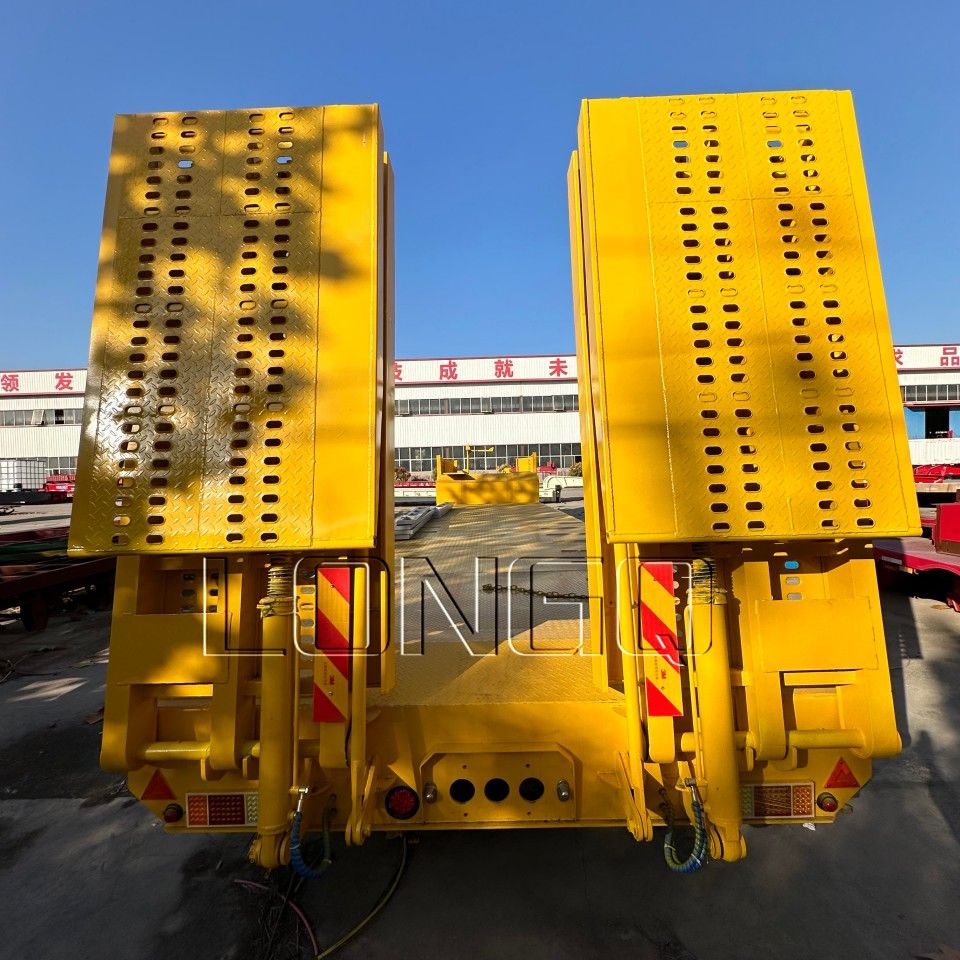

Multiple Loading Options: Equipped with ramps or a detachable gooseneck, low bed semi trailers provide flexible loading options for various types of equipment.
Enhanced Stability: The low center of gravity improves stability during transportation, reducing the risk of tipping or swaying.
Function | large machinery or excavator |
Dimensions(L*W*H) | 10500-18000*3000-3500*1130-1550mm |
Max Payload | 25-100T |
Tire | 6.5-20/7.5-20/8.00-20/8.5-20/9.00-22.5 / 11.00R20Triangle/Hankook brand |
Main beams | Q345 or T700 high strength bao steel materil,Thickness increases according to load |
Axles | 13T/16/20T LONGQ or BPW or FUWA brand,Three axis, four axis and other multi axis optional |
King Pin | 2 inch(50mm) or 3.5 inch(90mm) ,Fixed or active |
Brake System | WABCO Valve with big chamber |
Landing Gear | two-speed Manual operating heavy duty 28ton or 32ton |
Suspension | Bo spring suspensio, Air suspension |

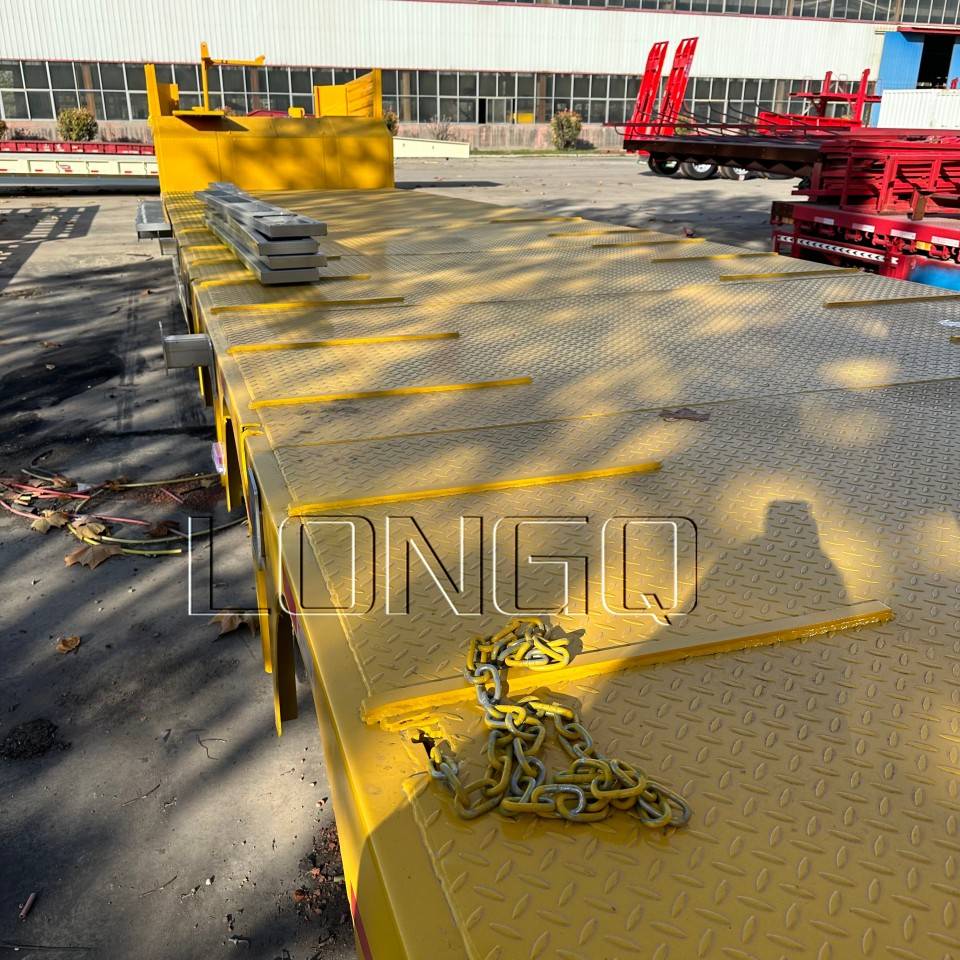

Floor | 3mm4mm6mm diamond steel plate |
Painting | The whole car is sandblasted, two layers of anti-rust paint, two layers of paint |
Electrical System | 24w 7core socket lights according to European standards (suitable for all market) |
Other parts | 1 tool boxs, 1 spare tire rocket |
Remark | We can design model according to client's requirement |
