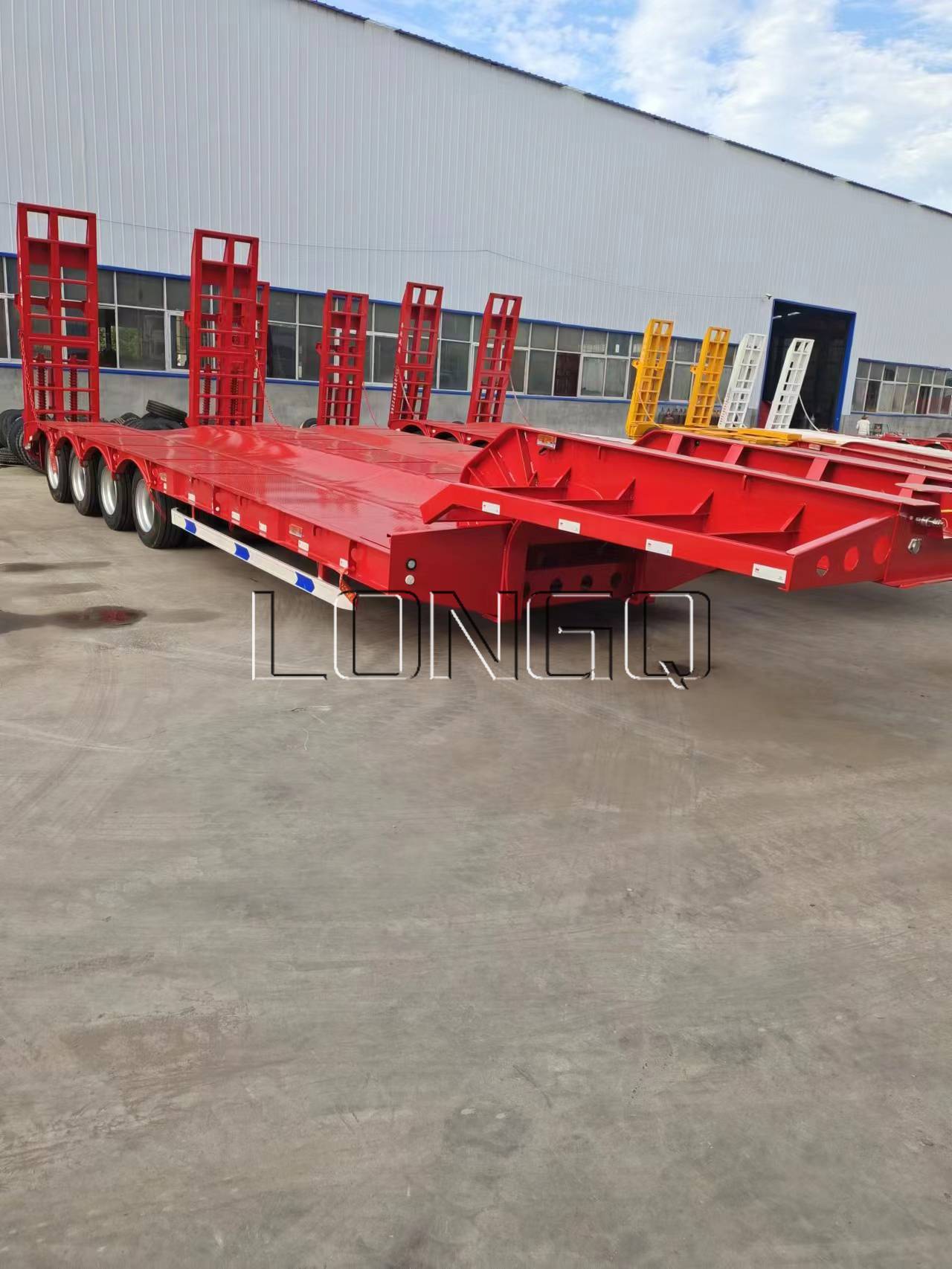

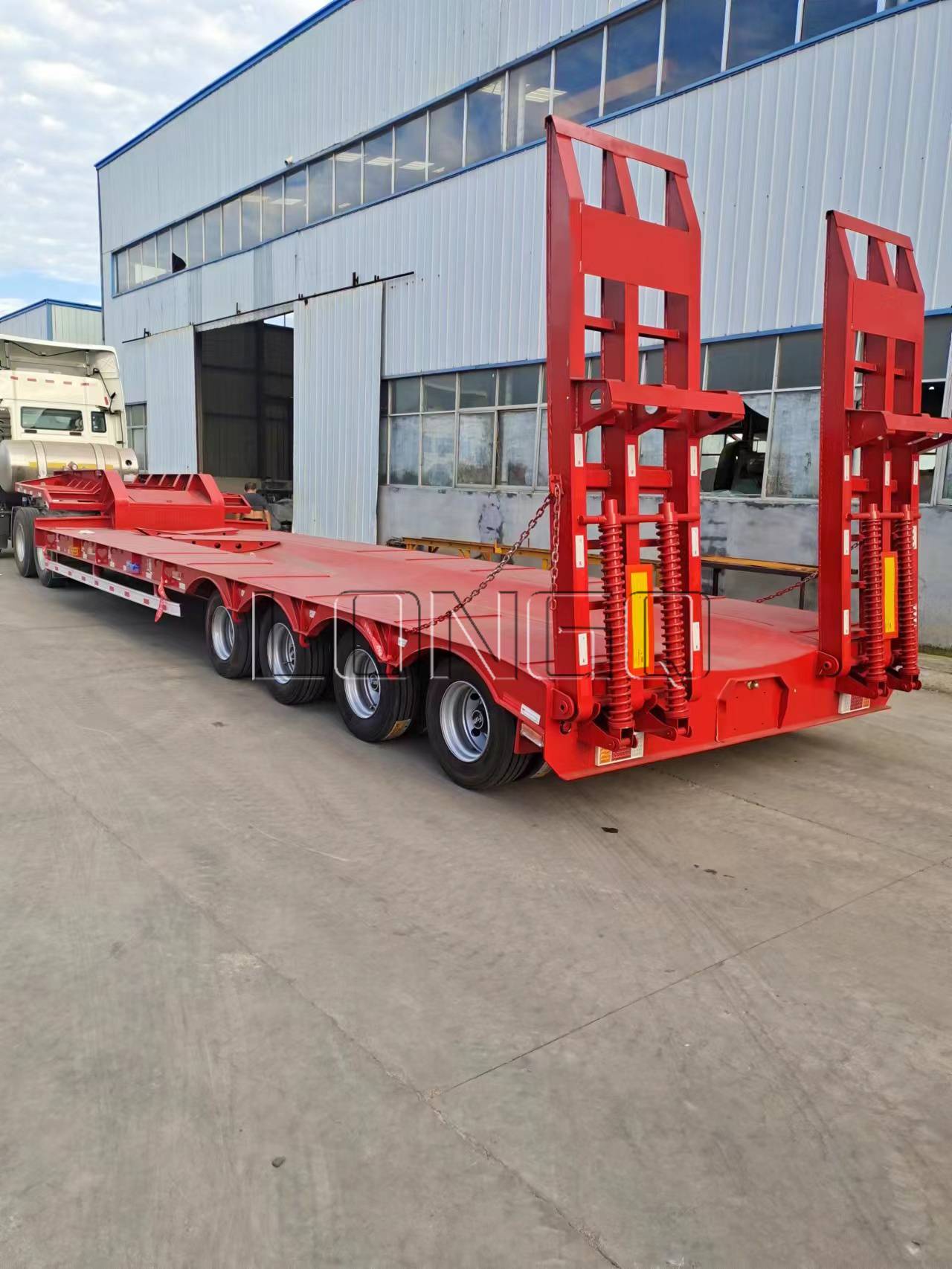

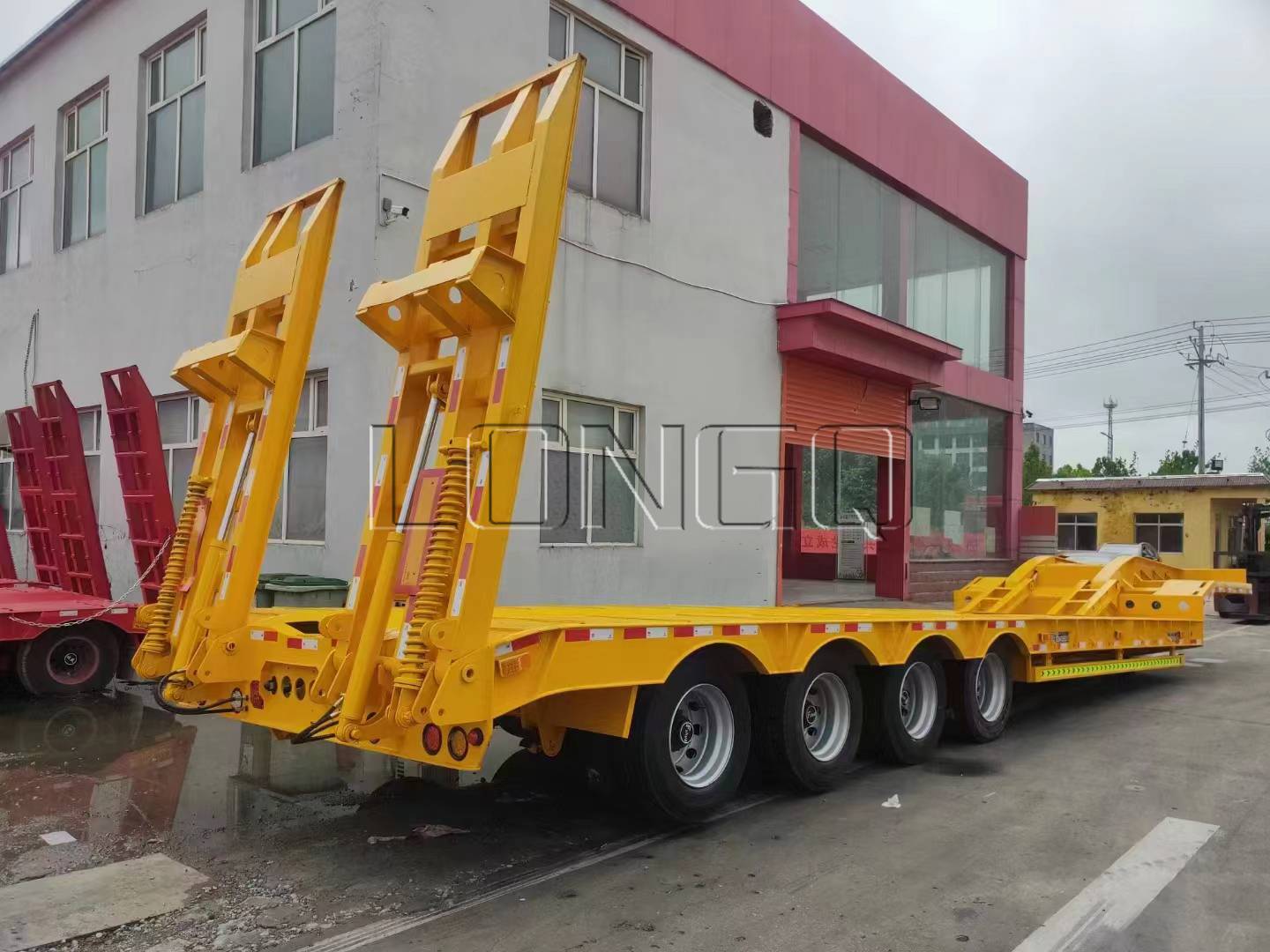

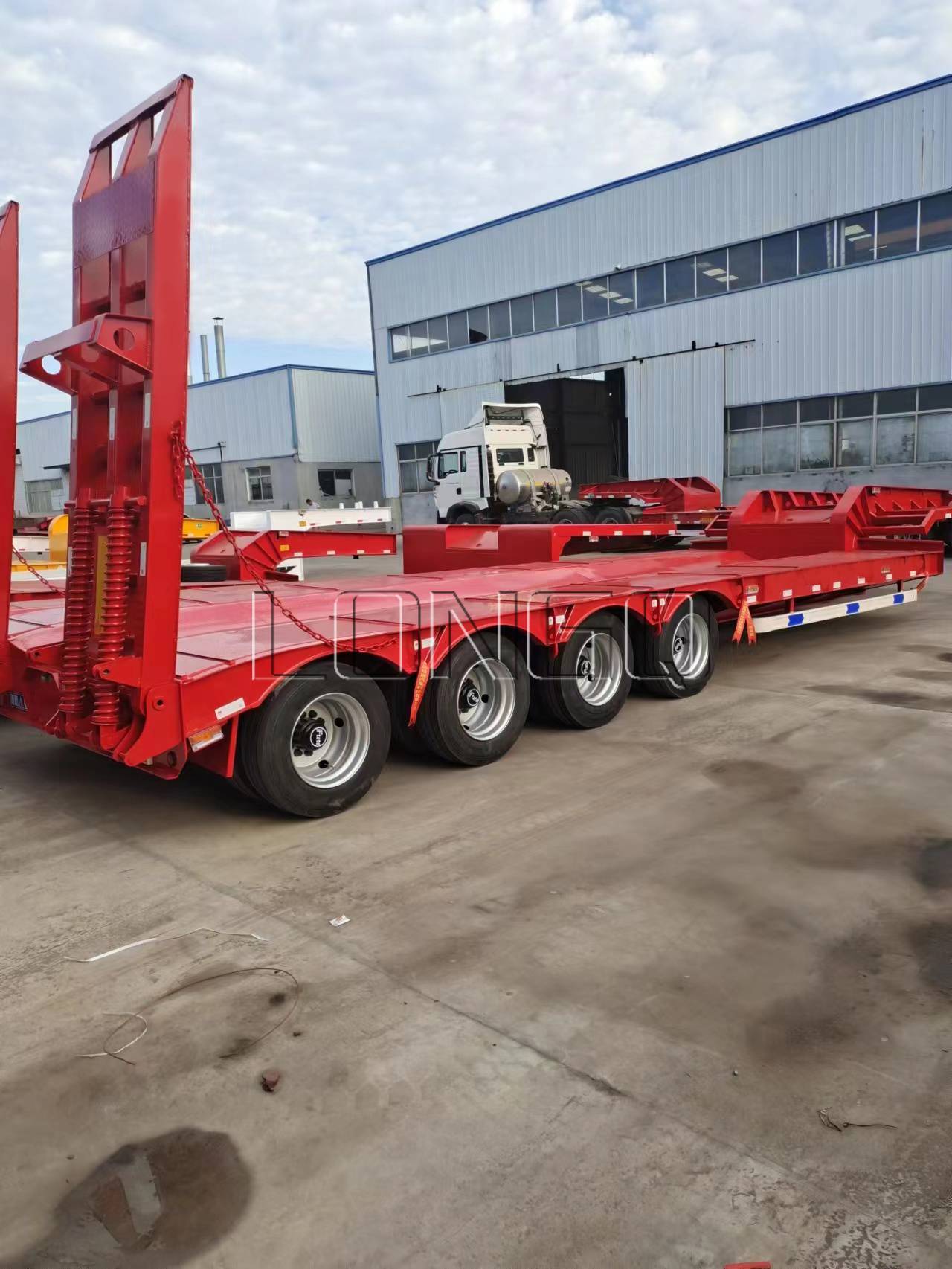

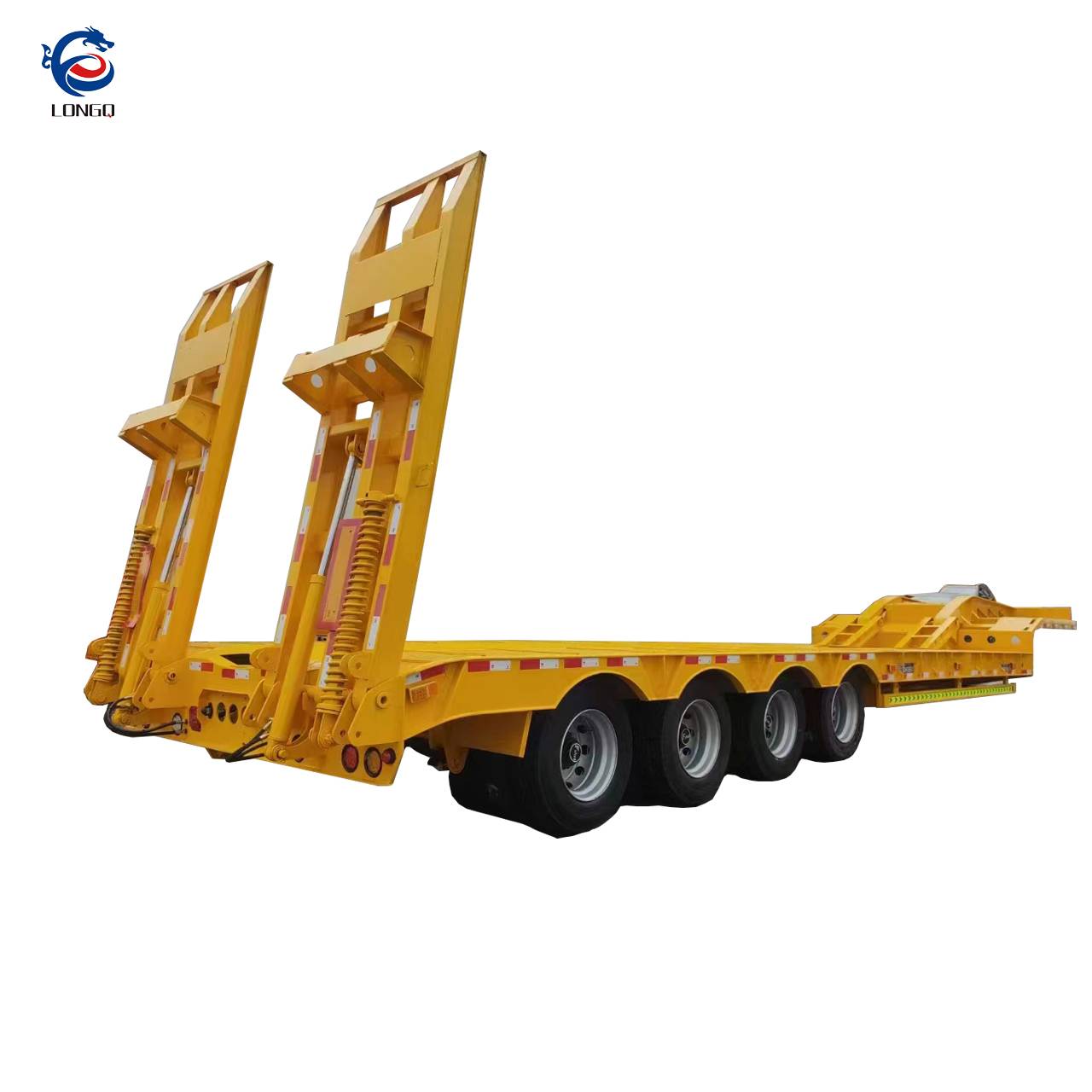

4 Axle Low Bed Trailer
1. Low center of gravity: Because the goods are too heavy, the low flat truck must be stable when transporting the goods to ensure that there will be no problems in the transportation of goods. Therefore, the center of gravity of the low flatbed car is low, which ensures the stability of the vehicle
2. Good stability: The stability of low flat truck is better than that of other large trucks, on the one hand, because of its low box height, on the other hand, because of its design structure, and the use of good stability method in the design of railings and component combinations
3. Excellent safety factor: Low plate semi-trailer has a great advantage, that is, when transporting heavy goods, it can transport goods at a very high speed. Because of its excellent characteristics, it does not lead to risks when transporting goods in a timely manner
4. Easy loading and unloading of goods: the platform height of low flat trailer is lower than that of ordinary flat trailer, and the goods are easy to load and unload
5. Low overall height: The overall height of the low flat trailer is low, which can avoid the problem of height restriction
Product Detail
Lowbed semi trailers, also known as lowboy trailers, are specialized trailers designed for transporting heavy and oversized loads. These trailers have a lower deck height compared to standard trailers, allowing them to transport taller cargo without exceeding height restrictions. Lowbed semi trailers are commonly used for hauling construction equipment, machinery, and other large items that require a lower center of gravity during transportation.
The design of lowbed semi trailers typically includes a detachable gooseneck or detachable neck, which allows for easy loading and unloading of heavy equipment. They also feature multiple axles to distribute the weight of the cargo evenly and ensure stability while in transit. Overall, lowbed semi trailers are essential for the transportation of heavy and oversized loads that cannot be accommodated by standard trailers. They play a crucial role in the logistics and construction industries by enabling the safe and efficient transportation of large equipment and machinery.
Related Products
Function | large machinery or excavator |
Dimensions(L*W*H) | 10500-18000*3000-3500*1130-1550mm |
Max Payload | 25-100T |
Tire | 6.5-20/7.5-20/8.00-20/8.5-20/9.00-22.5 / 11.00R20Triangle/Hankook brand |
Main beams | Q345 or T700 high strength bao steel materil,Thickness increases according to load |
Axles | 13T/16/20T LONGQ or BPW or FUWA brand,Three axis, four axis and other multi axis optional |
King Pin | 2 inch(50mm) or 3.5 inch(90mm) ,Fixed or active |
Brake System | WABCO Valve with big chamber |
Landing Gear | two-speed Manual operating heavy duty 28ton or 32ton |
Suspension | Bo spring suspensio, Air suspension |
Floor | 3mm4mm6mm diamond steel plate |
Painting | The whole car is sandblasted, two layers of anti-rust paint, two layers of paint |
Electrical System | 24w 7core socket lights according to European standards (suitable for all market) |
Other parts | 1 tool boxs, 1 spare tire rocket |
Remark | We can design model according to client's requirement |
